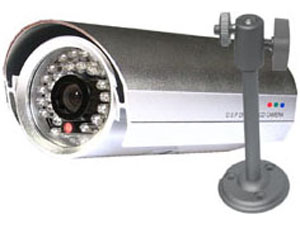

420 TV Lines 1/4" Sony CCD 3.6mm Lens Waterproof 30 LED Color IR Camera

Features

• 1/4" Sony Super HAD CCD
• 420 TV lines
• ELC, AGC, AWB
• 30 infrared LEDs
• 50' infrared distance
• Waterproof design

Specifications

• Image sensor: 1/4" Sony Super HAD CCD
• Signal system: NTSC
• Effective pixels: 512 (H) x 492 (V)
• Horizontal resolution: 420 TV lines
• Minimum illumination: 0 Lux (IR LED on)
• S/N ratio: More than 48dB
• Lens: Built-in 3.6-mm lens
• Infrared LED: 30 LEDs
• Infrared effective distance: 50'
• Video output: 1V P-P, 75W, BNC
• Shutter speed: 1/50/sec. - 1/100,000/sec.
• Power: 12V DC, 500mA
• Operating temperature: -10 degrees C to 50 degrees C (14 degrees F to 122 degrees F)
• Dimensions: 4" x 2.5"
