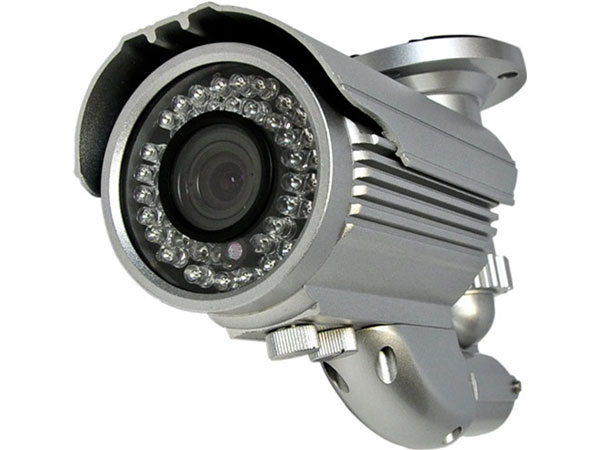

420 TVL 1/3" Sony Super HAD CCD 3.6mm-8mm Vari-Focal Lens Weatherproof IR Bullet Camera - Silver
|
CNA#: 603385
|
420 TV lines, 1/3" Sony Super HAD CCD and Sony DSP, 3.6mm-8mm externally adjustable vari-focal lens, 12V DC 450mA power
Features
-
1/3" Sony Super HAD CCD
-
420 TV lines resolution
-
3.6mm-8mm lens
-
Light activated photo cell
-
42 850nm infrared illuminators (viewable up to 75' distance in total darkness)
-
Automatic White Balance, Automatic Gain Control
-
Silver weatherproof housing (IP67 rating)
-
One year limited warranty
Specifications
-
Image sensor: 1/3" Sony Super HAD CCD
-
Signal system: NTSC
-
Effective pixels: 752 (H) x 582 (V)
-
Synchronous system: Internal
-
Minimum illumination: .5 Lux / 0 Lux @ F1.2 (IR on)
-
Resolution: 420 TVL
-
Color temperature: 3,000 ~ 9,000
-
S/N ratio: Better than 42dB (AGC off)
-
Electronic shutter: 1/60 ~ 1/50 ~ 1/80,000 sec
-
Video output: 1V P-P composite, 75 Ohms
-
Gamma: 0.45
-
Back light compensation: Option on board
-
Operation temperature: -10 degrees F to 120 degrees F
-
Power supply: 12V DC
-
Power connector: DC
-
Video connector: BNC
-
Cables run inside the bracket
-
Suitable for indoor or outdoor use
|
|
|
|
