500 ft. 350MHz CMR UTP Solid Cat5e & (4) 16 AWG Audio Cable Combo Cable


Now: $299.00
CNA#: 203707

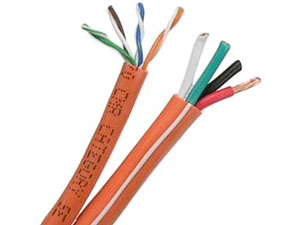

500' 350MHz CMR UTP solid Cat5e and (4) 16 AWG audio cable combo cable.

Applicable Standards
  • 350MHz CMR UTP Solid Cat5e Cable
    • ETL listed type CMR
    • C(ETL) listed FT4
    • ETL verified to TIA-568-C.2 and ISO/IEC 11801
    • RoHS compliant
    • ATM 155 Mbps
    • Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100BASE-T4, 1000 Mbps 1000BASE-T Gigabit Ethernet (IEEE 802.3) and 16 Mbps Token Ring (IEEE 802.5)
  • Dual RG6 Quad Shield Coaxial Cable
    • 75 Ohms
    • SCTE IPS-SP-001
    • UL 1655, UL 13, UL 444
    • RoHS compliant

    Physical Characteristics

    350MHz CMR UTP Solid Cat5e Cable

    Number of Conductor Pairs 4
    Size 23 AWG
    Stranding Solid
    Conductor Material Solid Annealed Bare Copper
    Shield Material Unshielded
    Rip Cord Yes
    Insulation Material Polyethylene
    Insulation Overall Diameter 0.040 in. ± 0.0002 in.
    Insulation Average Thickness 0.0088 in.
    Jacket Flame Retardant PVC
    Outer Jacket Average Wall Thickness 0.023 in.
    Outer Jacket Nominal O.D. 0.244 in. ± 0.008 in.
    Nominal Weight 30lbs
    16 AWG Audio Cable

    Number of Conductors 4
    Size 16 AWG
    Stranding 65/34
    Diameter 0.0063"
    Diameter over Dielectric 0.058"
    Insulation Fire Retardant PVC
    Diameter over Dielectric 0.092"
    Jacket Fire Retardant PVC
    Diameter over Dielectric 0.28"
    Nominal Jacket Thickness 0.022"
    Minimum Spot 0.018"
    Conductor Resistance 3.7 Ohms
    Nominal Weight 27lbs
