The Digital Surveillance in A Box package is a budget friendly security surveillance Digital Video Recorder for home and other small facilities. It comes with 4 high quality, all-weather, lightning proof CCD night vision cameras, and records directly to its internal hard drive. On top of that, the Digital Surveillance in A Box package is fully networkable and includes bundled software which allows easy remote viewing from your home, office, clinic, store, etc., using your computer or 3G capable cell phone via your internet connection. The Digital Surveillance in A Box package is proudly designed as a simple do-it-yourself product. Configure your Digital Surveillance in A Box package to schedule Automatic, Manual or Motion Detection real time recording day and night.
* All specifications herein are subject to change without prior notice
-
Connect DVR to VGA monitor for easy setup -- no PC needed!
-
Monitor up to (4) cameras simultaneously
-
Monitor remotely from a computer with an Internet connection
-
Stream video to your 3G mobile phone while you are away
-
Crystal clear video quality -- No detail is missed!
-
Download your selected recorded videos to your USB flash drive for video playback or just making a backup
-
Pinpoint suspicious events while saving hard drive space
-
Control all DVR functions in your hand
-
Holds one 3.5" SATA hard drive with capacity up to 2TB (sold separately)
-
High performance video codec with no quality compromise
-
Heavy-duty metal casing
-
Small size and light weight design allows easy hiding
-
Bundled with (4) high quality all-weather, lightning proof, night vision cameras, each with (11) infrared LEDs with automatic On/Off
-
View all four cameras in one screen, or just the selected camera only, or rotate view of each camera every 2 to 28 seconds
-
All four channels can be setup to schedule recordings by the hour, or by the number of days, or activate recording when motion is detected
-
Set multi-user access with different access rights, set new backup admin rights in case user admin is accidentally deleted, or set a particular person for monitoring only, etc.

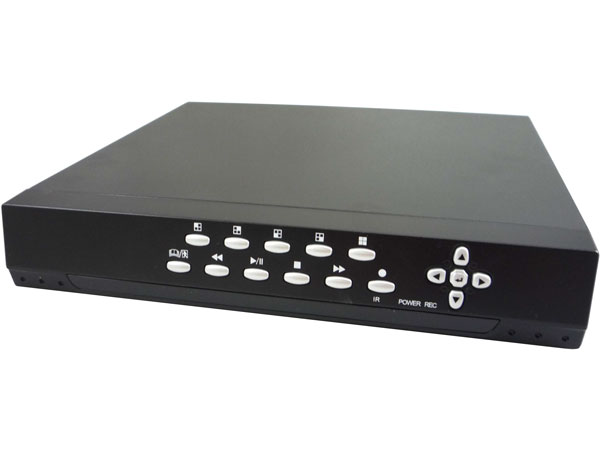

DVR Technical Specifications
Video Compression
MJPEG/MPEG4

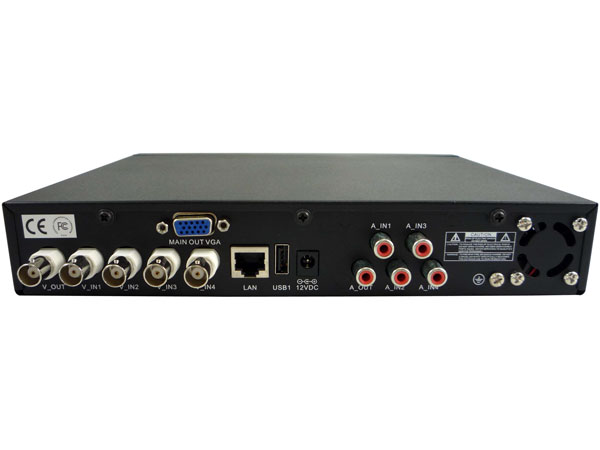

Video Input
(4) BNC connectors
Video Output
(1) VGA connector and (1) BNC connector
Display Resolution (NTSC)
652 (H) x 582 (V)
Display Resolution (PAL)
652 (H) x 582 (V)
Display Frame Rate (NTSC)
120fps
Display Frame Rate (PAL)
100fps
Display Division
Single/Sequence/Split (1/4)
Audio Input
(4) RCA connectors
Audio Output
(1) RCA connectors
Recording Resolution (NTSC)
640 x 224
Recording Resolution (PAL)
640 x 272
Recording Frame Rate (with Auto Balance Mode, NTSC)
60fps
Recording Frame Rate (with Auto Balance Mode, PAL)
50fps
Recording Mode
Continuous/Schedule/Montion Detection
Recording Quality
High/Normal/Low
Search Mode
Time/Event
Storage Support (sold separately)
(1) internal 3.5" SATA HDD
Backup Device
USB flash drive
Network Connection
RJ45
Network Protocol
TCP/IP, Static IP, DHCP, PPoE, DDNS
Network Remote
Remote monitoring; Recording and playback by Client Program and IE browser
USB
(1) port
Mouse (included)
USB connector

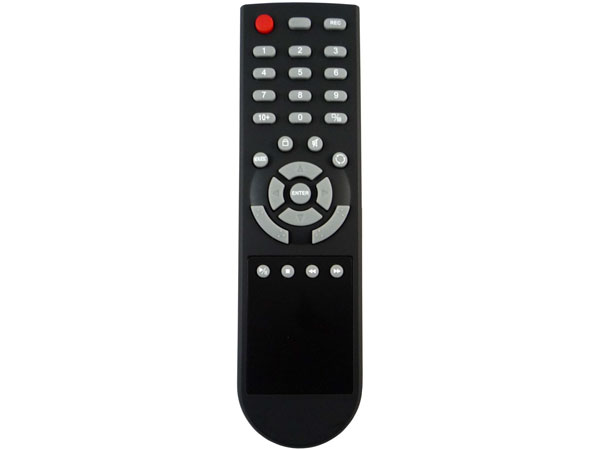

IR Remote Controller
Included (requires (2) AAA batteries for operation)
Power Adapter (External)
Input: 100~240V AC, 50/60Hz
Output: 12V DC, 5A
Certifications
FCC, CE, RoHS
Dimensions
9 7/8" (W) x 1 3/4" (H) x 9 /34" (D)

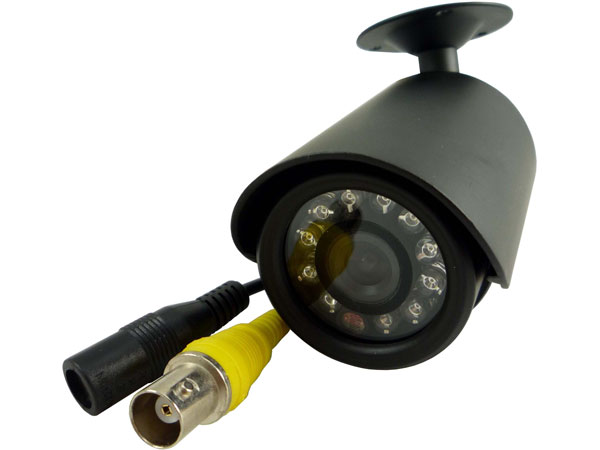

Camera Technical Specifications
Pick-Up Device
1/4" BF CMOS
Effective Pixels
PAL: 652(H) x 582 (V)
NTSC: 652 (H) x 492 (V)
Resolution
400 TVL
Sensor Size
2.7mm x 3.6mm
Sync System
Internal
Scanning System
2:1 interlace
Illumination
< 0.3Lux (IR On)
S/N Ratio
> 50dB (AGC off)
Automatic Electronic Shutter
1/50 ~ 1/100,000 sec.
Lens
3.6mm built-in
View Angle
90 degrees
Gamma
0.45
White Balance
Automatic
AGC
Automatic
Video Output
1.0V p-p, 75 Ohms
IR distance
10 ~ 12m
IR LEDs
(11) per camera
Power Supply
12V DC
Operating Current
90mA (IR off), 180mA (IR on)
Operating Temperature
-10 degrees C to 50 degrees C

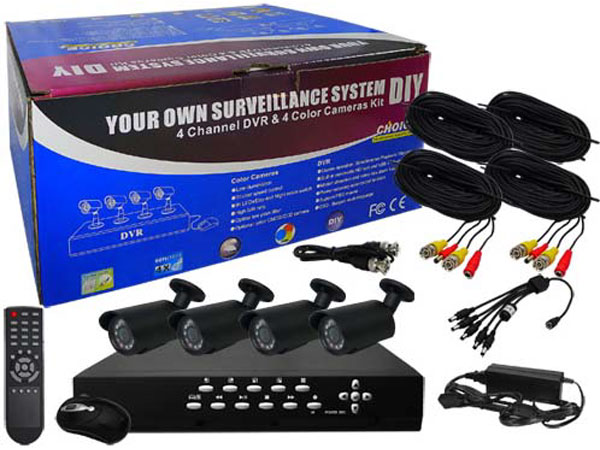

Package Contents
-
(1) 4 channel surveillance DVR
-
(4) high quality all-weather, lightning proof, (11) LED night vision cameras
-
(1) 12V DVR power adapter
-
(1) 4-way camera power splitter
-
(4) 50' BNC with power camera connection cables
-
(1) USB mouse
-
(1) IR remote control (requires (2) AAA batteries for operation
-
(1) Installation guide and user's manual
-
(1) Utility CD (includes user manual and software)
