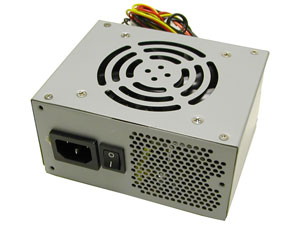

Micro ATX 230 Watt Power Supply

MATX/E-Machine 115/230V switchable power supply. 2-1/2" x 5" x 4". Features high efficiency with low ripple and noise. Output over voltage protection and short circuit protection on all outputs. Resetable power shut down. Approved by UL, TUV, IEC, CB and CE. Internal 12V fan provided. 100% burn-in under high ambient temperature (50C). Vacuum-impregnated transformer. MTBF: 100K HOURS AT 25C. 100% Hi-pot tested. Line input fuse protection. Passive PFC (Power Factor Correction) Circuit at 230VAC. Product Specifications: ATX/P4 12V read, 200W, (4) 12V connectors; Over voltage protection: +5V; Output: 6.5V, +3.3V. Power good signal: turn-on delay 100ms to 500ms; AC Input: 115/230VAC, 8/4A, 60/50Hz. DC Output: +3.3V, Min. current 11.5A, Max. current: 18.7A +5V, Min. Current: 12.6A, Max. Current: 16A; Voltage: -5V, Output: 0.3A; Voltage: +12V, Output: 10A; Voltage: -12V, Output: 0.3A; Voltage: +5V-SB, Output: 2.0A. Remote on/off control. Temperature Range: Operating 0C-50C, Non-operating: -20C-+65C. Temperature coefficient: 0.01%C. Transient Response: Output voltage recovers in less than 1ms max. following a 25% load change. Hold up time: 10.0ms minimum at 230V/50Hz. dielectric withstand: Input/output 1800VAC for 1 second, input to frame ground 1800 VAC for 1 second. Humidity: 5-95% RH. Efficiency: 60% Min, 70% typical at full load. Power good signal: turn-on delay 100ms to 500ms Overload protection: 150% Max.
