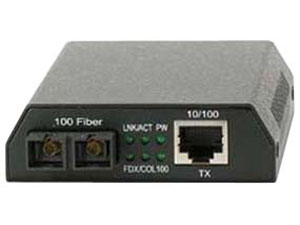

10/100 Media Converter SC/MM 1310nm 2Km


Now: $43.00
CNA#: 102503
The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required)or with TP-LINK system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.
Features
  • Auto negotiation of 10/100Mbps and auto MDI/MDX-X for TX port
  • Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
  • Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
  • Extend fiber distance up to 2km
  • Easy-to-view LED indicators provide status to monitor network activity easily
  • External power supply
Specifications
  • Standards & Protocols
    • IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Basic Function
    • Half/Full-Duplex transfer mode for FX port
    • Half Duplex Flow Control (IEEE 802.3x)
    • Half Duplex Flow Control (Backpressure)
    • Extends fiber distance up to 2km
    • Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
  • Ports
    • 1 100M SC port
    • 1 100M RJ45 port (Auto MDI/MDIX)
  • Network Media
    • 10BASE-T
      • UTP category 3, 4, 5 cable (max. 100m)
      • EIA/TIA-568 100 STP (max. 100m)
    • 100BASE-T
      • UTP category 5, 5e cable (max. 100m)
      • EIA/TIA-568 100 STP (max. 100m)
    • 100BASE-FX
  • Multi-mode Fiber
  • LED Indicators
    • PWR, FDX/Col, Link/Act, SPD
  • Safety & Emission
    • FCC, CE
  • Dimensions (W x D x H): 3.7" x 2.9" x 1.1" (94.5mm x 73mm x 27mm)
  • Environment
    • Operating temperature: 0 degrees C ~ 40 degrees C (32 degrees F ~ 104 degrees F)
    • Storage temperature: -40 degrees C ~ 70 degrees C (-40 degrees F ~ 158 degrees F)
    • Operating humidity: 10% ~ 90% non-condensing
    • Storage humidity: 5% ~ 90% non-condensing
  • Power supply
    • External power adapter
