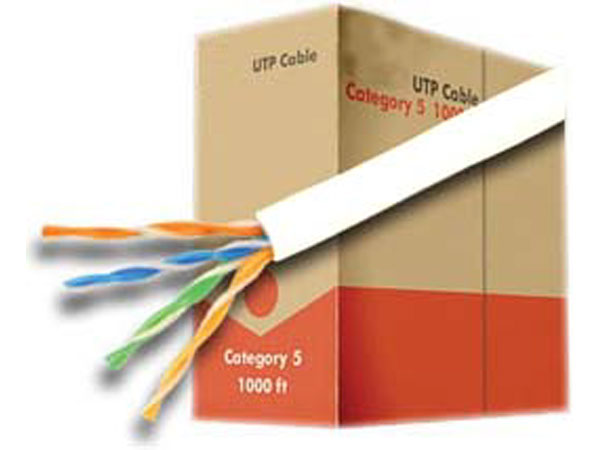

1000 ft 350MHz CMP UTP Solid Plenum Cat5e Bulk Network Cable - White
|
|
CNA#: 82-927WH
Shipping: This item is excluded from shipping discounts
* Whole number only
|
1,000' 350MHz CMP UTP solid plenum Cat5e cable; White.
Applicable Standards
- ETL listed type CMP
- C(ETL) listed FT6
- ETL verified to TIA-568-C.2 and ISO/IEC 11801
- RoHS compliant
- ATM 155 Mbps
- Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100BASE-T4, 1000 Mbps 1000BASE-T Gigabit Ethernet (IEEE 802.3) and 16 Mbps Token Ring (IEEE 802.5)
Physical Characteristics
| Number of Conductor Pairs
|
4
|
| Size
|
24 AWG
|
| Stranding
|
Solid
|
| Conductor Material
|
Solid Annealed Bare Copper
|
| Shield Material
|
Unshielded
|
| Rip Cord
|
Yes
|
| Insulation Material
|
Polymer Alloy (FEP)
|
| Insulation Overall Diameter
|
0.0351" ± 0.0002"
|
| Insulation Average Thickness
|
0.0078"
|
| Jacket
|
Flame Retardant PVC
|
| Outer Jacket Average Wall Thickness
|
0.019"
|
| Outer Jacket Nominal O.D.
|
0.200" ± 0.008"
|
| Nominal Weight
|
23lbs
|
Mechanical Characteristics
| Temperature Rating
|
Installation
|
0° C to 60° C
|
|
Operating
|
-20° C to 75° C
|
| Tensile Strength
|
Before
|
> = 13.8 Mpa
|
| Elongation
|
Aging
|
> = 100%
|
| Aging Condition
|
|
100° C x 240 hours
|
|
After
|
> = 85% of unaged
|
|
Aging
|
> = 50% of unaged
|
Color Code
| Pair 1
|
White/Blue
|
Blue
|
| Pair 2
|
White/Orange
|
Orange
|
| Pair 3
|
White/Green
|
Green
|
| Pair 4
|
White/Brown
|
Brown
|
|
|
|
|
